Heritage Within (HWITHIN) aims to develop an innovative approach to present buildings and archaeological ruins. The project intends to obtain a complete 3D reconstruction of ancient monuments, including the exterior and interior of their constructive elements. The final complete 3D model will be implemented into an augmented reality application to offer a unique visualization of these elements on an almost stone-by-stone basis.



hwithin-colaboradores





PRESENTATION EVENT



Saturday, December 18, 2021
Archaeological museum of Carmo, Lisbon (Portugal)

The project proposed to implement state-of-the-art technologies to produce an innovative visualization of the cultural heritage by showing what is hidden to our naked eye and the unknown, nonvisible features of our buildings and archaeological assets. The final 3D model and associated information has been implemented into an augmented reality application to offer a unique visualization of our heritage, on-site and remotely. The presentation event aims to present the results of the project, gathered in the “HWITHIN integrated analyses” app. The visitors will be able to visit the monument using the newly developed app and the members of the HWITHIN research team will assist them during the event.

Program

10:00-10:30 Welcome and presentation of HWITHIN Research Project

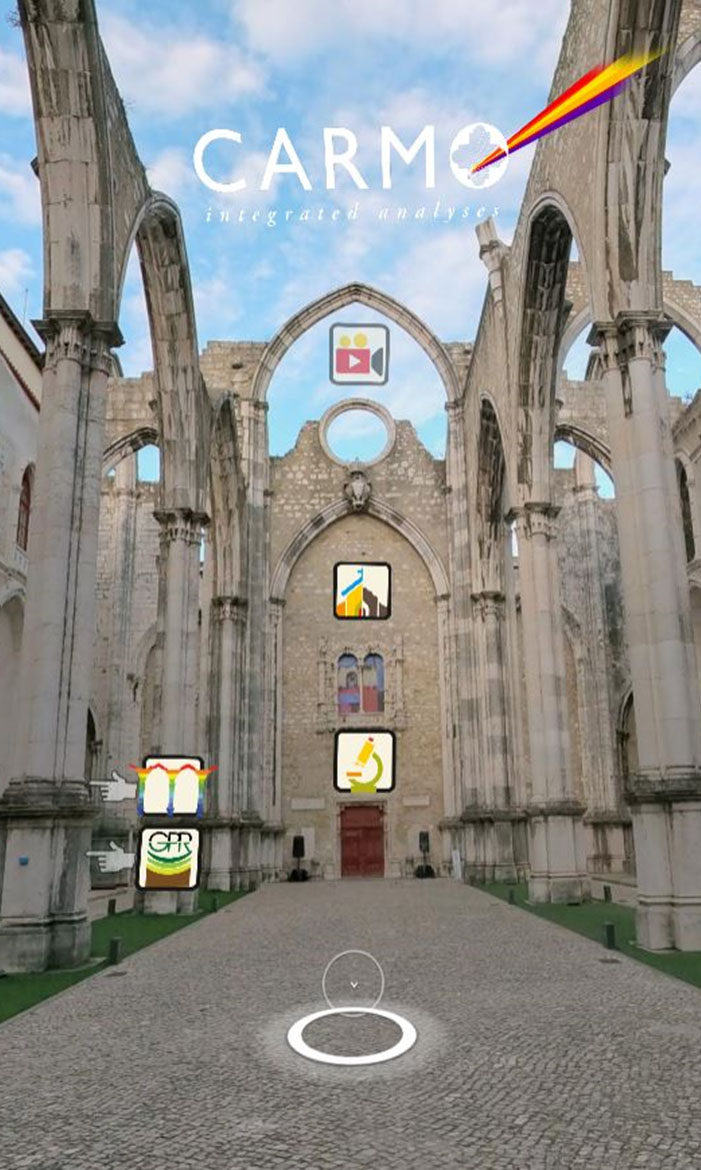

10:30-11:00 Training on the use of “CARMO integrated analyses” app
11:00-14:00 Visit to the museum using “CARMO integrated analyses” app

Registration

Free registration until reaching full capacity
Email: h-within@itefi.csic.es







Segunda campaña experimental



ultrasonic tomograpy-second north column
Ultrasonic Tomography. Second North Column

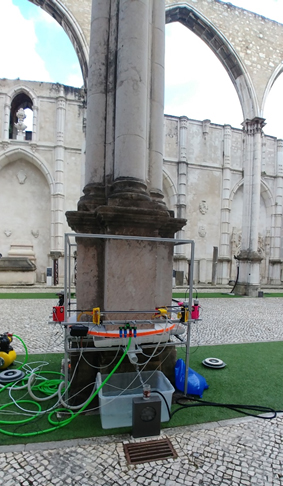

Durante los días 25 al 30 de abril de 2021, se ha realizado la segunda campaña experimental, con la participación de investigadores del ITEFI (CSIC), ISISE (Univ. do Minho) y GAPS (ETSIT, UPM) en el Convento do Carmo en Lisboa. En esta campaña se han inspeccionado el pedestal y fuste de las columnas mediante tomografía ultrasónica y GPR. El sistema automático de tomografía ultrasónica ha sido diseñado para adaptarse a la geometría compleja de las columnas del museo.

Además, se realizó fotogrametría terrestre de varios elementos constructivos específicos con el objetivo principal de obtener una reconstrucción 3D completa del edificio. Una de las tareas del proyecto es desarrollar un modelo digital en 3D del estado original de la iglesia, antes de que fuera parcialmente destruida por el terremoto de Lisboa de 1755.











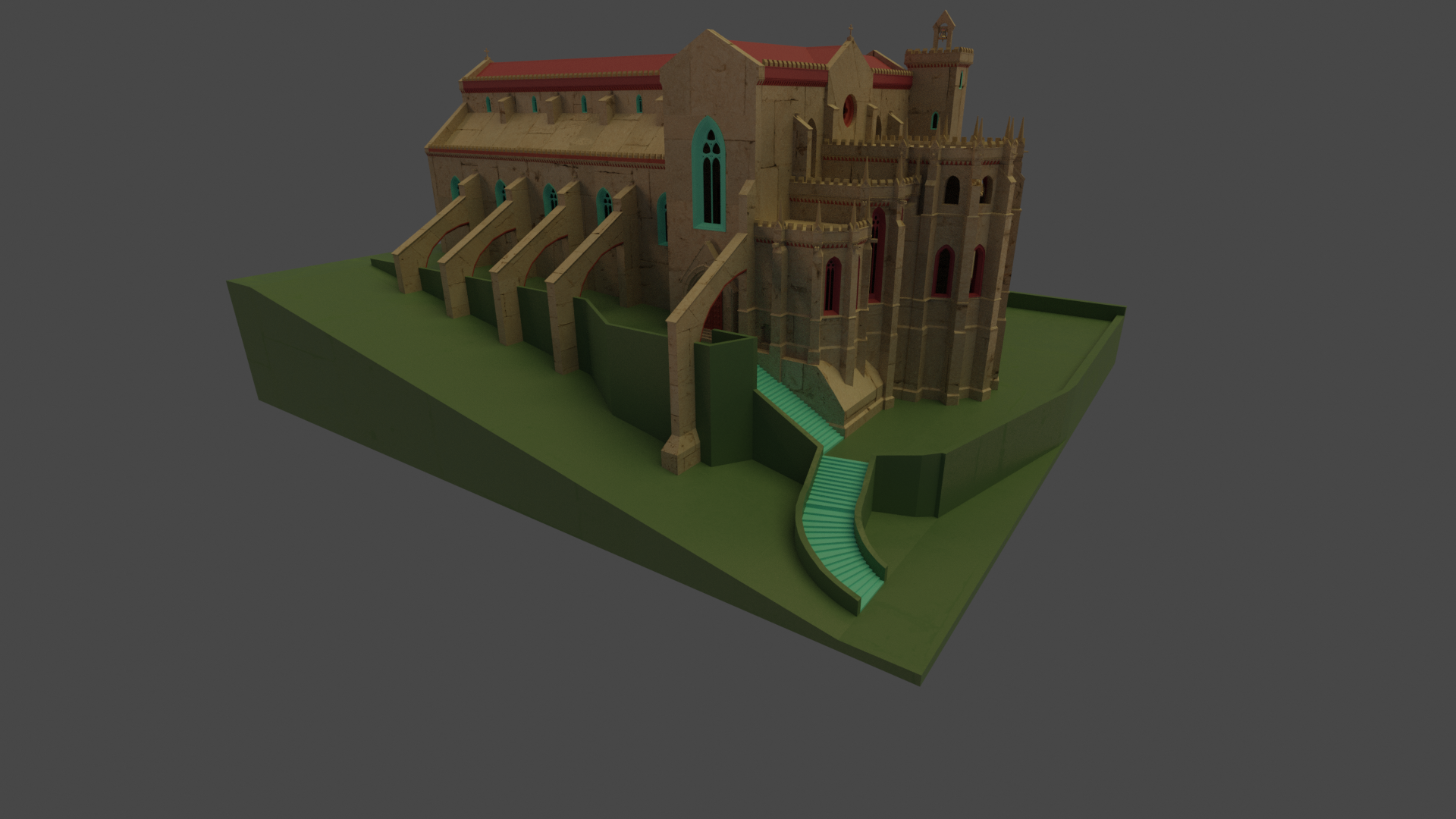

Convento del Carmo, modelo 3d
Modelo 3D del estado actual del Convento, el modelo se ha construido a partir de la planimetría y fotogrametría



Primera campaña experimental



La campaña se ha realizado durante las dos primeras semanas de noviembre de 2020

medidas en el Convento de Carmo



During the experimental on-site campaign at the Archaeological Museum of Carmo, ultrasonic tomography and Ground Penetrating Radar (GPR) inspection are being used for the inspection of two columns to distinguish the boundaries between different materials and identify the stone blocks that constitute the column. The automatic acoustic tomography system has been specifically adapted to the shape of the masonry columns of the museum and is being implemented for the first time.





Información adicional del proyecto puede encontrarse en la página web del mismo: https://hwithin.civil.uminho.pt/

Publicaciones
Libros y Capítulos de Libro
G-CARMA 3D Reconstruction of Carmo Convent. Historical Evolution and 3D Modeling
Rodrigo Martín
Booklet Heritage Within, páginas 29-42
ISBN: 978-989-54496-6-8
G-CARMA 3D internal reconstruction of the case study. Ultrasonic Tomography
Juan Carlos Liébana, Guillermo Anaya, Rodrigo Martín, Sofía Aparicio, Miguel Ángel García, Margarita González, José Javier Anaya
Booklet Heritage Within. páginas 53-64
ISBN: 978-989-54496-6-8
G-CARMA 3D internal reconstruction of the case study. Laboratory investigations
Jillian Borghardt, Javier Ortega, Graça Vasconcelos, Tiago Ferreira, Juan Carlos Liébana, Guillermo Anaya, Rodrigo Martín, Sofía Aparicio, Miguel Ángel García, Margarita González, José Javier Anaya
Booklet Heritage Within, páginas 77-88
ISBN: 978-989-54496-6-8
G-CARMA 3D internal reconstruction of the case study. Ground Penetrating Radar (GPR)
Margarita González, Miguel Ángel García, José Javier Anaya, Sofia Aparicio, Giovanni Leucci, Maria Sileo, Nicola Masini, Javier Ortega
Booklet Heritage Within, páginas 65-76
ISBN: 978-989-54496-6-8
G-CARMA Rethinking preventive conservation: Recent examples
P.B. Lourenço, A. Barontini, D.V. Oliveira, J. Ortega
Chapter in Geotechnical Engineering for the Preservation of Monuments and Historic Sites III. Tylor&Francis Group, 2022
https://doi.org/10.1201/9781003308867
Revistas JCR
G-CARMA An Ultrasonic Tomography System for the Inspection of Columns in Architectural Heritage
Aparicio Secanellas, S.; Liébana Gallego, J.C.; Anaya Catalán, G.; Martín Navarro, R.; Ortega Heras, J.; García Izquierdo, M.Á.; González Hernández, M.; Anaya Velayos
Sensors 2022, 22, 6646
https://doi.org/10.3390/s22176646
TSF Rádio Notícias Logo Reportaje de la cadena portuguesa TSF Rádio Notícias sobre el proyecto HWITHIN

Entrevista el 18 de diciembre de 2021 a Javier Ortega Heras, miembro de la Universidade do Minho y coordinador del proyecto HWITHIN y reportaje sobre el trabajo realizado en el Convento do Carmo, Lisboa.

https://www.tsf.pt/portugal/cultura/e-possivel-ver-o-antigo-convento-do…

SIC-NOTICIAS-LOGO Aplicação permite ver o Convento do Carmo antes de ficar em ruínas

Reportaje de la cadena portuguesa de televisión SIC Noticias sobre el evento final del proyecto Heritage Within que tuvo lugar el pasado 18 de diciembre de 2021 en Lisboa.

https://sicnoticias.pt/cultura/2021-12-18-Aplicacao-permite-ver-o-Conve…

Entidades participantes en el proyecto

Universidade do Minho (UM), Consejo Superior de Investigaciones Científicas (CSIC), Universidad Politécnica de Madrid (UPM), Consiglio Nazionale delle Ricerche (CNR)
