Combined US and UWB-RF imaging of concrete structures for identification and location of embedded materials

ultrasonic tomography
ultrawide band radio frequency inspection
non-destructive test
hormigón
sensorial-fusion
J.L. Blanco-Murillo, D. Lluveras, V. Yagüe Jiménez, J.J. Anaya, F.J. Casajús-Quirós, M.A.G. Izquierdo, J.M. Menéndez, M. G. Hernández, A. Herrera
Construction and Building Materials 152 (2017) 693-701
https://doi.org/10.1016/j.conbuildmat.2017.07.036

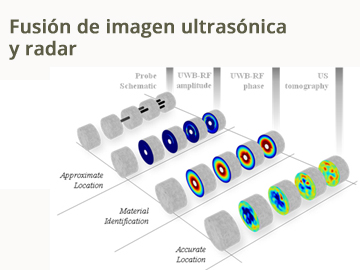

We describe how two different techniques: ultrasonic and ultrawide-band radio frequency inspections, can be used and combined to detect embedded structures in concrete. Joint analysis shall overcome limitations of the individual technologies, while providing further information on specimens. In this case, ultrasonic inspection achieves good spatial resolution, while radio-frequency analysis provides information on composition – i.e., material. The proposed techniques were tested on a concrete probe, with embedded reinforcement bars. Images resulting from multisensory fusion provided relevant information regarding the presence, location and material of the bars; and are well suited for in-site inspection, under real ambient conditions.

Acknowledgements

The activities and results described in this contribution are part of the HORFI project, a multidisciplinary, coordinated project, funded by the Spanish Ministry of Economy and Competitivity under Grants TEC2012-38402-C04-01, TEC2012-38402-C04-03 and TEC2012-38402-C04-04. We acknowledge the contribution of Cementos Portland Valderrivas Group for kindly supplying the cement to fabricate the test probe.
