Onboard System to Measure the Noise Radiated by Individual Vehicles to the Near and Far Fields

  • Proyecto

Road traffic noise amounts to roughly half of the overall ambient noise. Usual emission (vehicle emission limits) and immission (barriers, sound-reducing windows) noise control techniques have not been enough to decrease significantly the annoyance by road traffic over the last three decades. The positive effect of these control techniques has been counteracted by the increase of traffic density. Moreover, the traffic noise annoyance is highly correlated with the maximum noise levels usually produced by aggressive drivers. However, current traffic noise measurement systems are based upon an overall assessment, so that they are unable to discriminate between quiet and noisy drivers. Therefore, a near field noise measuring system is proposed in this research that is able to measure the contribution of each vehicle to the road traffic noise, allowing the detection of noisy drivers. The system is based on two onboard microphones, one for the engine noise and other for the rolling noise.

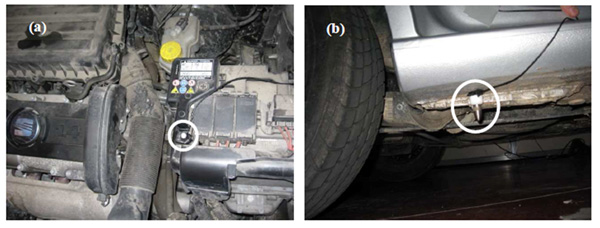

Engine and rolling microphones

Experimental results are provided that demonstrate the performance of the proposed system on five drivers, along suburban and urban courses of a large city, with petrol and diesel vehicles. The analysis of concurrent acoustical and driving condition data reveals that the system is capable of discriminating clearly those vehicles generating the maximum noise levels

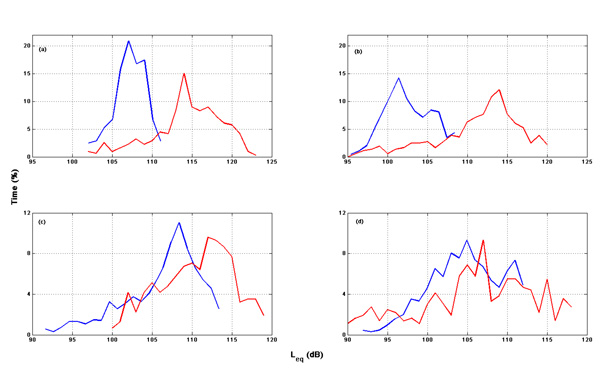

Histograms of the averaged drivers #1-4 (blue) and driver #5 (red) for (a) engine diesel,
(b) engine petrol, (c) rolling diesel, and (d) rolling petrol Leq,1s along the suburban course



Therefore, we demonstrated that harsh drivers radiate to the near field noise levels 5-9 dB higher than the average of normal drivers. However, most noise regulations are based on noise levels measured in the far field. Thus, we propose here a complete procedure for the extrapolation of the near field noise levels to the far field with a combination of analytical predictions and experimental measurements.

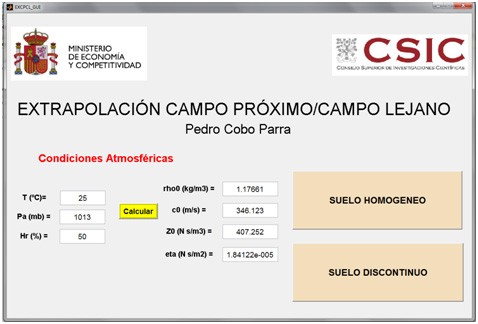

Graphical User Interface to extrapolate noise levels from near to far field
Example for a laterally homogeneous ground

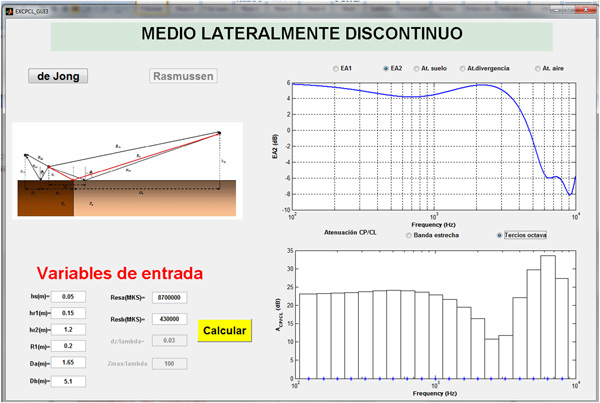

Example for a laterally discontinuous ground

Near and far field noise levels were concurrently measured on several trials including vehicle pass-by runs at constant velocities, and under harsh acceleration and deceleration. An excellent agreement is obtained between the noise levels measured at the far field and these extrapolated from the near field.

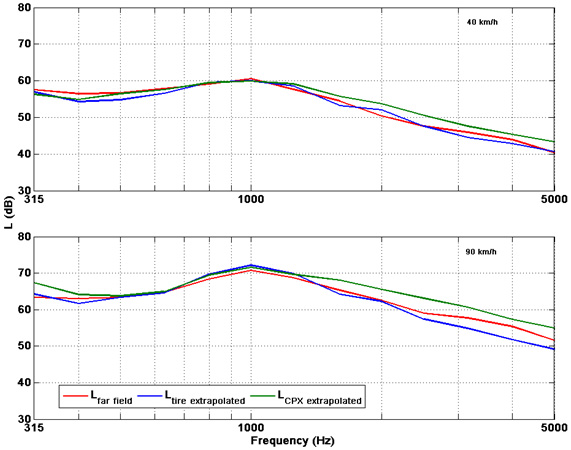

Experimental noise levels measured by the far-field microphone and extrapolated from engine,
tire and CPX positions, for pass-by tests at constant velocities of 40 and 90 km/h

Polytechnic University of Madrid. University Carlos III Madrid

Datos del proyecto

Investigador principal
Pedro Cobo Parra
Otros participantes ITEFI
Teresa Bravo María
Carlos de la Colina Tejada
María Cuesta Ruiz
Other personnel involved:

Carlos Ranz Guerra, David Ibarra Zárate

Inicio: 01-07-2008 Finalización: 01-07-2011
