Strategies for the characterization of cell populations in aqueous solutions using high-frequency ultrasound

cell detection
cell quantification
cell backscattering
ultrasound characterization
meningitis screening
  • Proyecto
  • Resultados

This contract with the company Newborn Solutions is part of a grant won by the aforementioned company in the RIS3 program of the Community of Madrid. The project proposes a study of high frequency ultrasound imaging (15-60MHz) in lymphocyte and neutrophil suspensions.

The objective of this study is to evaluate the capacity of ultrasound imaging techniques to distinguish both types of cells that, together, constitute the majority proportion of leukocytes present in cerebrospinal fluid (CSF) in the presence of meningitis. The interest of being able to identify both types of cells lies in the possibility of non-invasively differentiating a viral meningitis, related to a greater number of lymphocytes than neutrophils, from a bacterial meningitis, in which the opposite happens when the infection progresses.

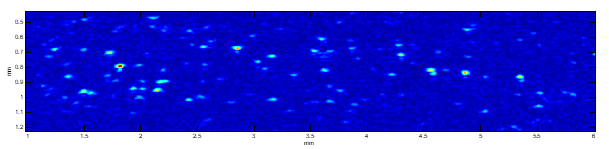

Microechography of a suspension of 400 neutrophils / µl in PBS performed with a scanning system centered at 50MHz. 5 µm lateral pitch, 313MHz axial sample rate
Microechography of a suspension of 400 neutrophils / µl in PBS performed with a scanning system centered at 50MHz. 5 µm lateral pitch, 313MHz axial sample rate



Publicaciones
Año: 2022
Tesis doctoral
DESARROLLO DE ALGORITMOS DE EVALUACIÓN DE LA CONCENTRACIÓN CELULAR A PARTIR DE IMÁGENES ECOGRÁFICAS PARA EL CRIBADO DE MENINGITIS
Alba Fernández Lozano
Tesis doctoral presentada en la Universidad Politécnica de Madrid el 19 de abril de 2022
https://doi.org/10.20868/UPM.thesis.70320
ULAB
Regresar arriba

Neos New Born Solutions (NBS)

Datos del proyecto

20212484
Contrato de ingreso
221954
Investigador principal
Luis Elvira Segura
Otros participantes ITEFI
Alberto Ibáñez Rodríguez
Montserrat Parrilla Romero
Other personnel involved:

Alba Fernández Lozano
Lucía León Prieto

Inicio: 08-04-2021 Finalización: 31-01-2022
